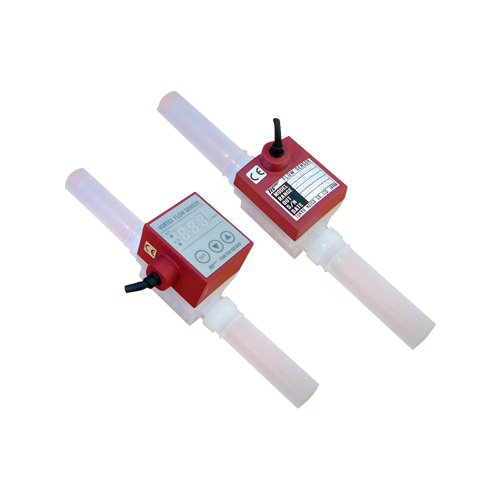

VF-3000-series Vortex flow sensor

The VF-3000 Flow Sensor offers a cost-effective instrument for the measurement of liquid flow.
A simple and clean design makes the VF-3000 a good choice for the measurement of ultra-pure water, DIW (de-ionized water) in semiconductor manufacturing plants.

All PFA fused construction version is also available, this version is an ideal choice for a plant where the extreme cleanness of the pipe is required.

Features

• Wide flow range enough to cover minimum 0.3 L/min and maximum 150 L/min.
• Designed for cleanness. Sensor body is made of New PFA (420HP-J). All PFA fused* construction version has been lined up and designed to eliminate the deposit.
• No maintenance cost. Since the VF-3000 has no moving parts, no maintenance is needed.
• Simple and compact design. The VF-3000 Flow Sensor is assembled with a few pieces of components. The sensor body and Shedder bar (vortex generator) are molded as one component. This design approach has reduced the cost as well as the size and weight of the flowmeter.
• CE Marking. The VF-3000 meets the EMC directive for CE mark.
• 3 models are lined-up.
  The function can be selected depending upon the application.
  Display + Current output model
  4 to 20mA output (3-wire), LED indicator, 2 points alarm output
  (Open collector)
  Current output mode
  4 to 20mA output (3-wire)
  Pulse output model
  Open collector output (Unscaled pulse)

* The flow range of All PFA fused construction version is 0.3 to 2.5 L/min, 0.5 to 4 L/min or 15 to 150 L/min.
