Elevating Wafer Handling and Inspection: The WHS-P Series Presenters

Introducing the WHS-P Series: Advanced Wafer Handling Equipment Manual wafer handling remains a major source of damage in semiconductor fabrication. The WHS-P series by Wafer Handling Systems, key pieces of wafer handling equipment, were developed to reduce handling errors and minimize wafer scratches. With designs that prioritize cleanliness, safety, and user efficiency, these wafer presenters are designed to enhance wafer inspection processes and support optimal workflow in cleanroom settings.

WHS-P1 Auto wafer presenter

WHS-P2 Wafer escalators

WHS-P3 5-wafer presenter

WHS-P4 1-wafer presenter

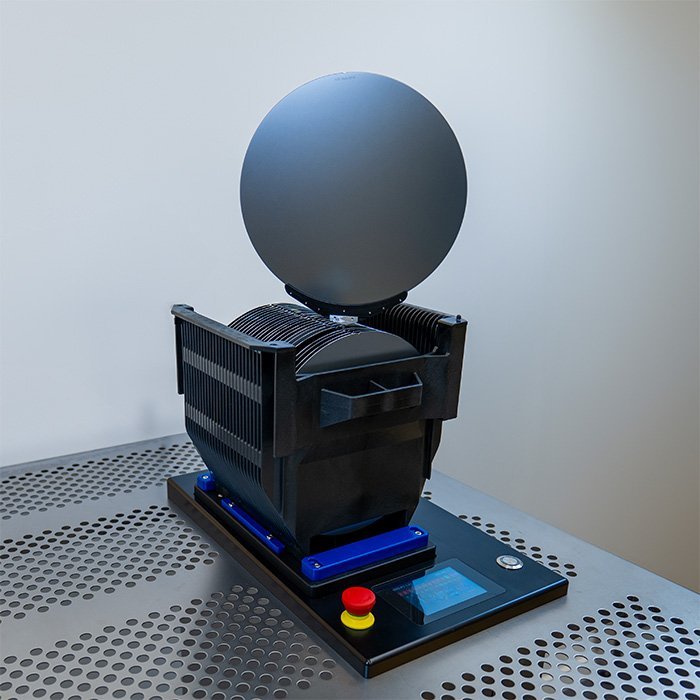

WHS-P1: Fully Automated Precision Handling & Inspection System

The WHS-P1 sets the bar as an advanced wafer inspection system. As leading-edge automated inspection equipment, it eliminates direct contact, gently raising wafers from their cassette. This enables safe wafer inspection, easy manual removal, and optional inversion. This automation significantly reduces the risk of damage and contamination while streamlining critical wafer inspection and sorting processes.

WHS-P1 Automatic wafer presenter

Contact us for wafer presenters

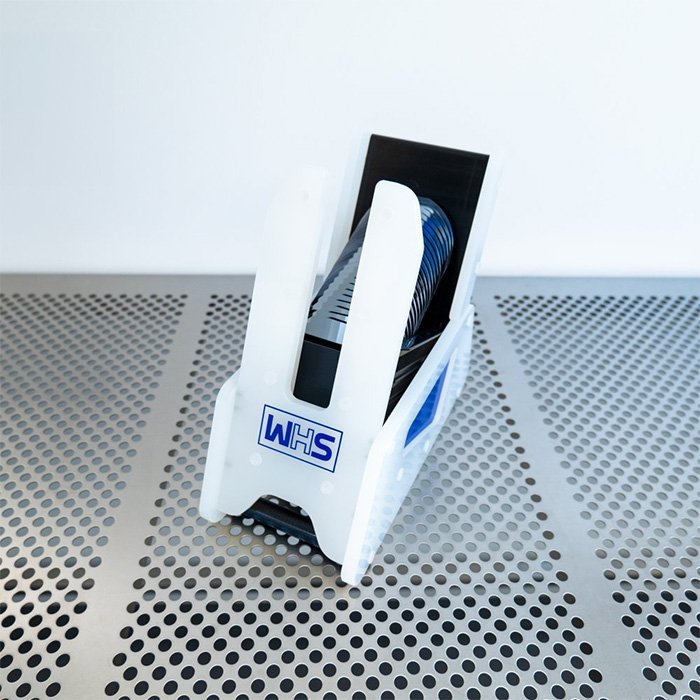

WHS-P2: Manual Efficiency for ID Wafer Inspection

Designed for operators needing efficient wafer inspection to verify wafer lot IDs with minimal contact, the WHS-P2 features a stepwise elevation mechanism. Each wafer is presented clearly and accessibly, reducing handling and the risk of surface damage—ideal for quick and safe wafer inspection tasks, specifically ID checks, in clean environments.

WHS-P2 Manual wafer escalator

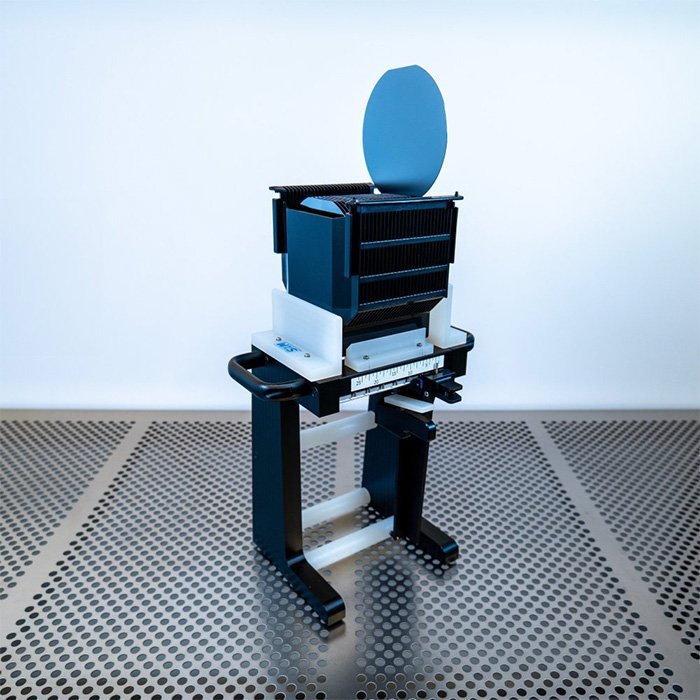

1178-279-manual-single-wafer-presenter-whs-p4-whs_700x700

WHS-P3 & WHS-P4: Practical, Protective Wafer Handling Solutions

For cost-effective manual presentation, the WHS-P3 and WHS-P4 provide tailored wafer handling equipment solutions. The WHS-P3 lifts every fifth wafer, improving semiconductor wafer handling for selective access without disturbing the full stack. The WHS-P4 focuses on single-wafer retrieval with precision, offering a flexible option for reducing contact and safeguarding wafer surfaces during manual extraction steps often preceding wafer inspection.

WHS-P3 5-wafer lifter

WHS-P4 manual wafer presenter

Unlock the Potential of the WHS-P Series

The WHS-P series helps semiconductor professionals improve semiconductor wafer handling with greater safety and efficiency. This specialized wafer handling equipment streamlines wafer inspection, reduces physical damage, and supports the high standards required in modern semiconductor manufacturing. Representing quality semiconductor inspection equipment, the WHS-P series is a smart investment in the longevity and performance of your operations.
