Manual wafer escalator (WHS-P2)
Wafer handling products
Manual wafer escalator (WHS-P2)
Choose your size:
Unique double angle lift comb design eliminates edge chipping
Each wafer is raised 5mm above previous for easy reading
Engineered with low abrasion materials
Antistatic Construction with Wafer Ground Paths
ISO 4, FS209E Class 10 Cleanroom
Applications:
- Lot integrity checks - Wafer escalators are used by operators in semiconductor fabs to manually check the IDs of wafers before they undergo the next process. This is part of the lot integrity checks, which help to ensure that the wafers are properly tracked and processed.

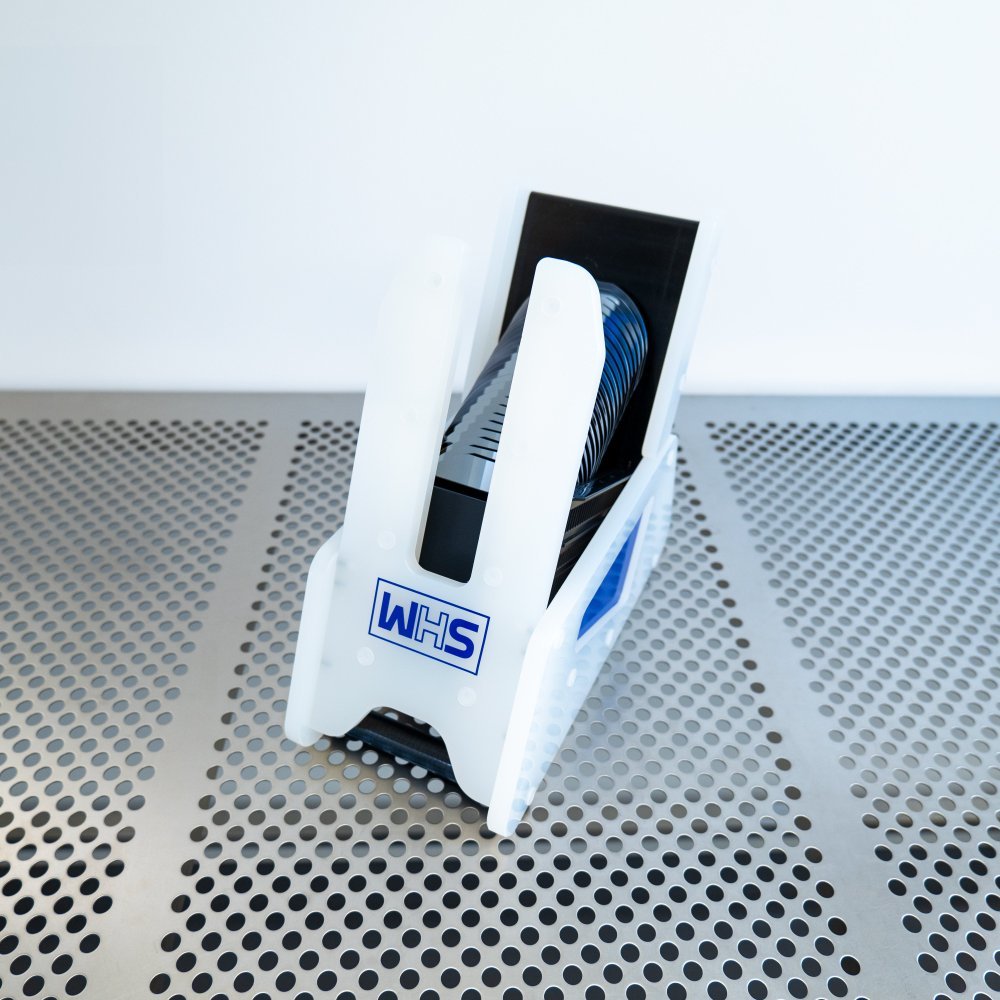

The WHS-P2 is a 25° angled antistatic table-top wafer presenter tool designed to present the wafer to the operator for wafer ID (laser mark) reading. They are available in the models: 100 mm (4”), 150 mm (6”) or 200 mm (8”) diameter wafers. Performance materials used for abrasion resistance, ESD safety (ground path from the wafer to ground), and good chemical resistance. Compatible with most SEMI standard 25 slot cassettes. This product is factory adjusted for ONLY one cassette type –please specify the cassette when ordering.
Our presenters only work with SEMI standards wafers:
- 4” 300-400 um
- 6” 645 um
- 8” 725 um
Not SEMI standards wafers please contact us for custom solutions.
Brand
Wafer handling products
Product Number
WHS-P2
Remarks
*** NOTE: Please specify cassette model number when ordering ***
Material
Lift Comb Material: Antistatic Polyoxymethylene | Frame Assembly Material: Natural Polypropylene
System
Manual
Size
100 (4”), 150 (6”), 200 mm (8”)
Slots
25-Slot
Status
Request information
