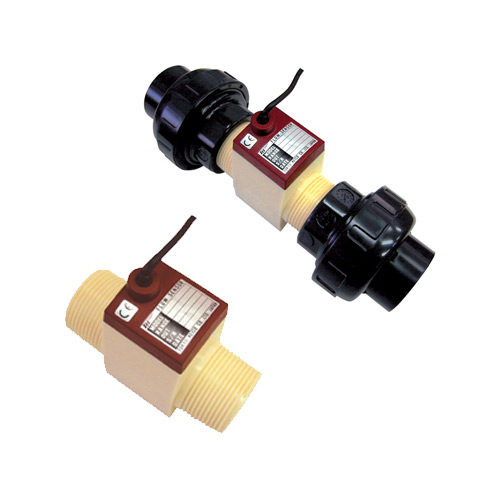

VF-2300-series Vortex flow sensor

Flow range of 10 - 150 L/min
No maintenance cost
Simple and compact design
Low pressure loss
Linear output
Product description
Specifications

VF-2300 is a vortex flow sensor for large flow and measures various types of liquid flow. Suitable for medium-scale facilities and lines for such sizes as 32 mm (1 - 1/4") and flow ranges of 25 - 250 L/min. The sensor body is made of PPS (Polyphenylene sulfide) and is designed to eliminate deposits.

Features

  • Flow range of 10 - 150 L/min
  • TS fitting and Flange fitting are available
  • Simple and compact design
  • No maintenance cost
  • Low pressure loss
  • Linear output
  • CE marking
Measuring medium Pure water, water, low viscosity chemical liquid
Flow range 25 to 250 L/min.
Fluid temperature 0 to 90 °C
(Specifications of temperature may change depending on the specification of the fitting.)
Fluid pressure 1 MPa max.
(Specifications of pressure may change depending on the specification of the fitting.)
Process Connection Taper pipe Thread (R1-1/4"), TS socket Fitting (Nominal diameter 30 mm) attached, 32A JIS10K FF Flange fittings attached or Taper Pipe Threads fitting (Rc1-1/4") attached
Accuracy ± 3 % F.S.
