Tokyo Keiso CO., LTD.

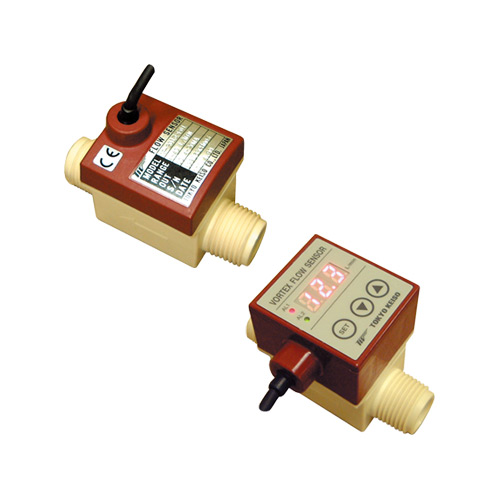

VF-2000-series Vortex flow sensor

VF-2000-series Vortex flow sensor
Tokyo Keiso CO., LTD.

VF-2000-series Vortex flow sensor

Flow range of 0.5 - 40 L/min
No maintenance cost
Simple and compact design
Low pressure loss
Linear output
Product description
Specifications

The VF-2000 Flow Sensor offers a cost-effective instrument for the measurement of liquid flow.
A simple and compact design makes the VF-2000 a good choice for the measurement of water, pure water, and cooling water.
The sensor body is made of PPS (Polyphenylene sulfide) and is designed to eliminate deposits.

Features

  • Simple and compact design
  • No maintenance cost
  • Low pressure loss
  • Linear output
  • CE marking
Measuring medium Pure water, Water
Nominal diameter 6 mm to 15 mm
Flow range (VF-20□1) : 0.5 to 4 L/min
(VF-20□2) : 2 to 16 L/min
(VF-20□3) : 4 to 40 L/min
Fluid temperature 0 to 70 °C
Fluid pressure 0 to 1 MPa
Process Connection Taper pipe threads
VF-20□1 : Equivalent to R3/8"
VF-20□2 : Equivalent to R1/2"
VF-20□3 : Equivalent to R1/2"
Accuracy ± 3 % F.S.
