Tokyo Keiso CO., LTD.

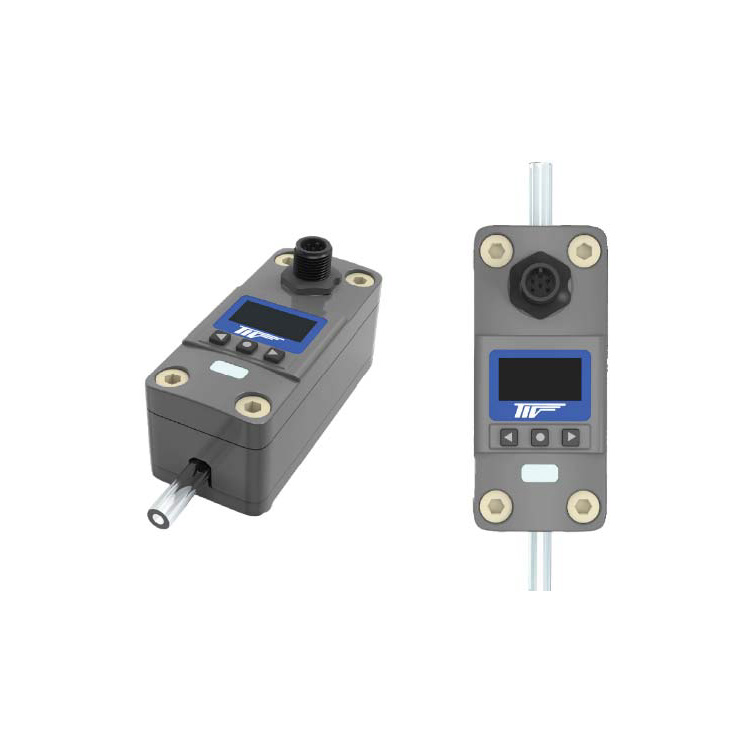

UCS-010-series Clamp-on type ultrasonic flowmeter

UCS-010-series Clamp-on type ultrasonic flowmeter
Tokyo Keiso CO., LTD.

UCS-010-series Clamp-on type ultrasonic flowmeter

Designed for plastic pipelines
Perfectly suitable for flow measurement in high-purity process applications
Simply clamp onto existing tubes
Sensors make no contact with the fluid medium
Product description
Specifications

The UCS-010 series is a clamp-on ultrasonic flowmeter designed for plastic pipelines. Measuring flow by simply clamping onto existing tubes, with the sensors making no contact with the fluid medium inside the tube. This flowmeter is perfectly suitable for flow measurement in high-purity process applications such as semiconductor manufacturing equipment.



Measuring fluid All liquids (without solid particles and bubbles)
Fluid temperature 0 - 60℃
Power supply DC 18 ~ 30 V
Outputs 4 - 20 mA / 0 - 20 mA / pulse output
Communication type RS-485 communication
Protection class IP65
Tube material PVC, CPVC, PFA, PVDF, PPH, etc. Various plastic tubes
Tube size 1/4” ~ 1-1/2”
