Tokyo Keiso CO., LTD.

Purge Meter P-060

Purge Meter P-060
Tokyo Keiso CO., LTD.

Purge Meter P-060

Waterlines, air/nitrogen lines
Customizable, contact us with your requirements
Product description
Specifications

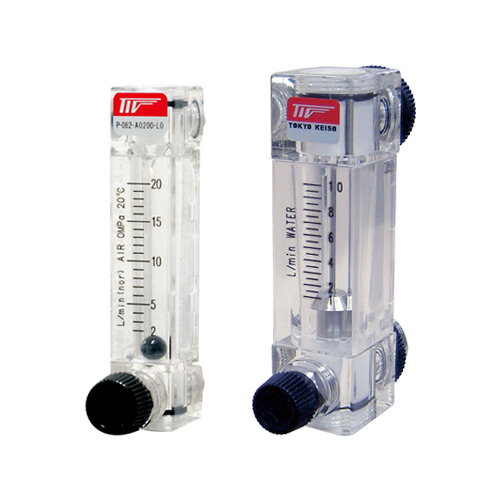

The P-060 is an acryl-mold, standard type purge meter. This ultra-compact, low-price purge meter is ideal for lot production. The P-060 is available in two sizes; 105 mm long, 22 mm wide and 114 mm long, 30 mm wide.

Applications

Waterlines, air/nitrogen lines.

  Small flow rate type / Body code: A Large flow rate type / Body code: B
Measuring medium Gases (air / nitrogen), Liquids (Equivalent to water: Density 1.0 g/cm³ Viscosity 1.0 mPa·s)
Nominal diameter Rc: 1/8" (Standard), 1/4" Rc: 3/8" (Standard), 1/4"
Flow range (Standard) Air:
  • Min. 0.2 to 2 L/min (nor)
  • Max. 5 to 50 L/min (nor)
Water:
  • Min. 10 to 100 mL/min
  • Max. 0.3 to 3 L/min
 Air:
  • Min. 5 to 50 L/min (nor)
  • Max. 30 to 300 L/min (nor)
Water:
  • Min. 0.3 to 3 L/min
  • Max. 1 to 10 L/min
Flow rate range, please select the format code
Fluid temperature Max. 50°C
Fluid pressure 0.5 MPa max.
Process Connection Rc
Accuracy ±5% F.S.
