Pneumatic Vacuum sealer 1000 mm
Pneumatic Vacuum sealer 1000 mm

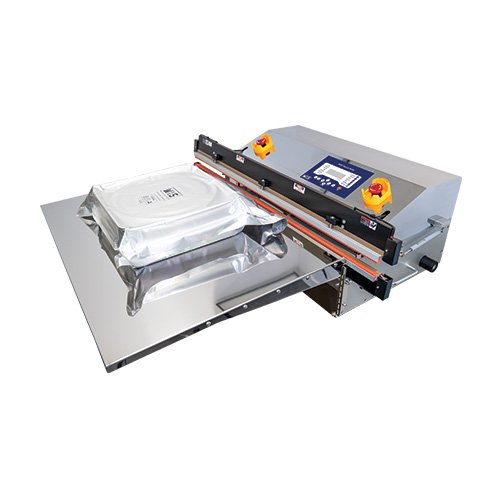

The WHS-B-S1000E is a high-capacity vacuum sealer designed for demanding industrial and food applications. Featuring dual hot wires on both sealing bars, with working stage robust stainless-steel construction, and a 1000 mm sealing length, it ensures airtight protection for moisture-sensitive products. Ideal for heavy-duty operations requiring precision and scalability.
Specifications:
Weight: 66 kg
Sealing length: 1000 mm
Sealing width: 5 mm or 10 mm
Vacuum: Pneumatic ejector system (compressed air)
Max vacuum strength: 75–80 kPa
Vacuum control: Adjustable by vacuum level (kPa) or time (seconds)
Gas flushing: Timer-controlled for precise gas replacement (Gas flushing is optional)
Compressed Air: 5–7 kgf/cm² (required)
Power supply: 1/3-phase, 220/380 V, 50/60 Hz
KEY FEATURES AND BENEFITS
Precision and durability
- Advanced HMI panel ensures precise sealing.
- Stainless steel construction for lasting performance.
- Double Hot Wire sealing bar for consistent, high-strength seals.
- Open housing design enhances heat dissipation for cooler, longer-lasting operation.
Operator convenience
- Multiple cycle modes (M1–M5) and specific modes for sealing (S) or vacuum-sealing (V).
- LCD displays real-time vacuum levels.
- Adjustable nozzle depth for versatile bag insertion.
- Foot pedal allows hands-free bag positioning.
Safety and maintenance
- Key lock prevents unauthorized adjustments.
- Nozzle retracts after 60 seconds of inactivity.
- Sealing bar lifts 2 seconds after sealing.
- Safety sensor detects obstructions and lifts the bar immediately.
- Circuit-protection fuses prevent electrical overloads.
- Real-time diagnostics for quick troubleshooting.
WHY CHOOSE THE WHS-B-S1000E?
The WHS-B-S1000E stands out for its exceptional reliability, user-friendliness, and precision. Its dual hot wire sealing bars and adjustable nozzle depth ensure secure packaging for large or irregularly shaped products. With energy-efficient pneumatic operation and real-time diagnostics, it minimizes downtime while maximizing productivity.
