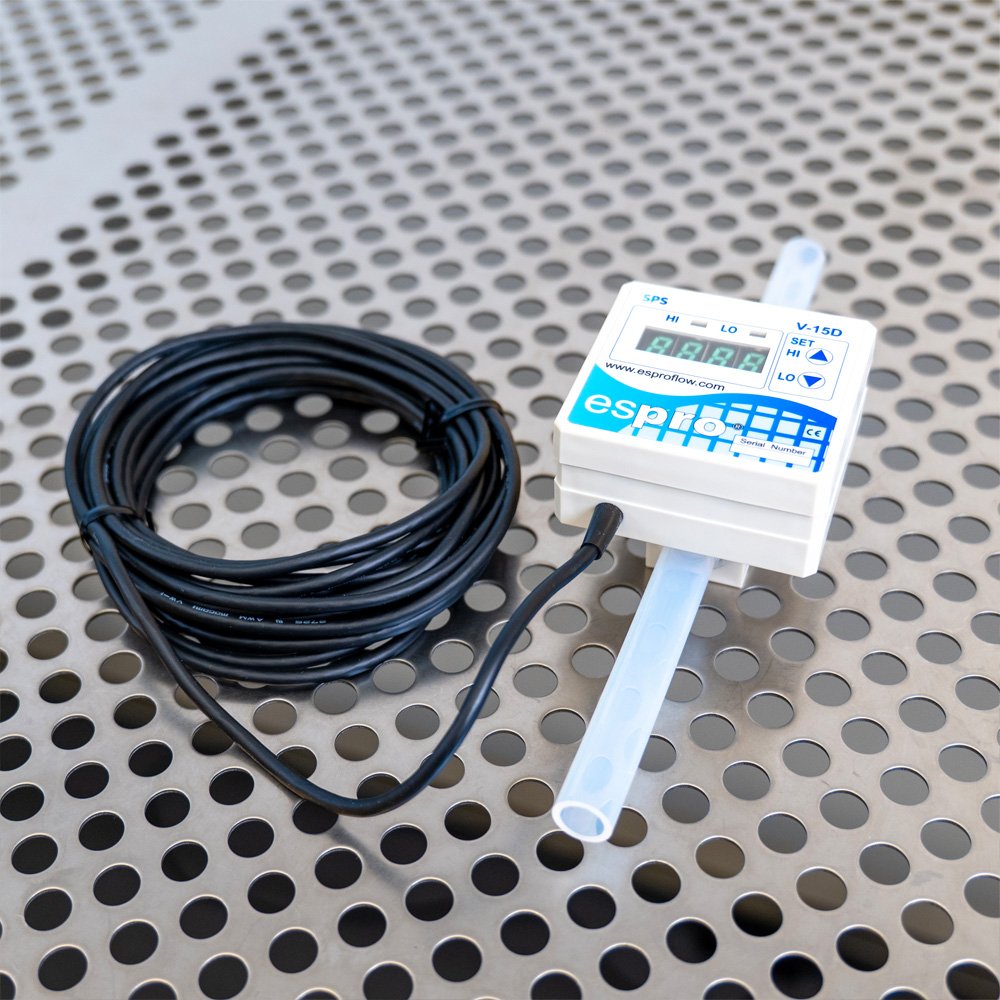

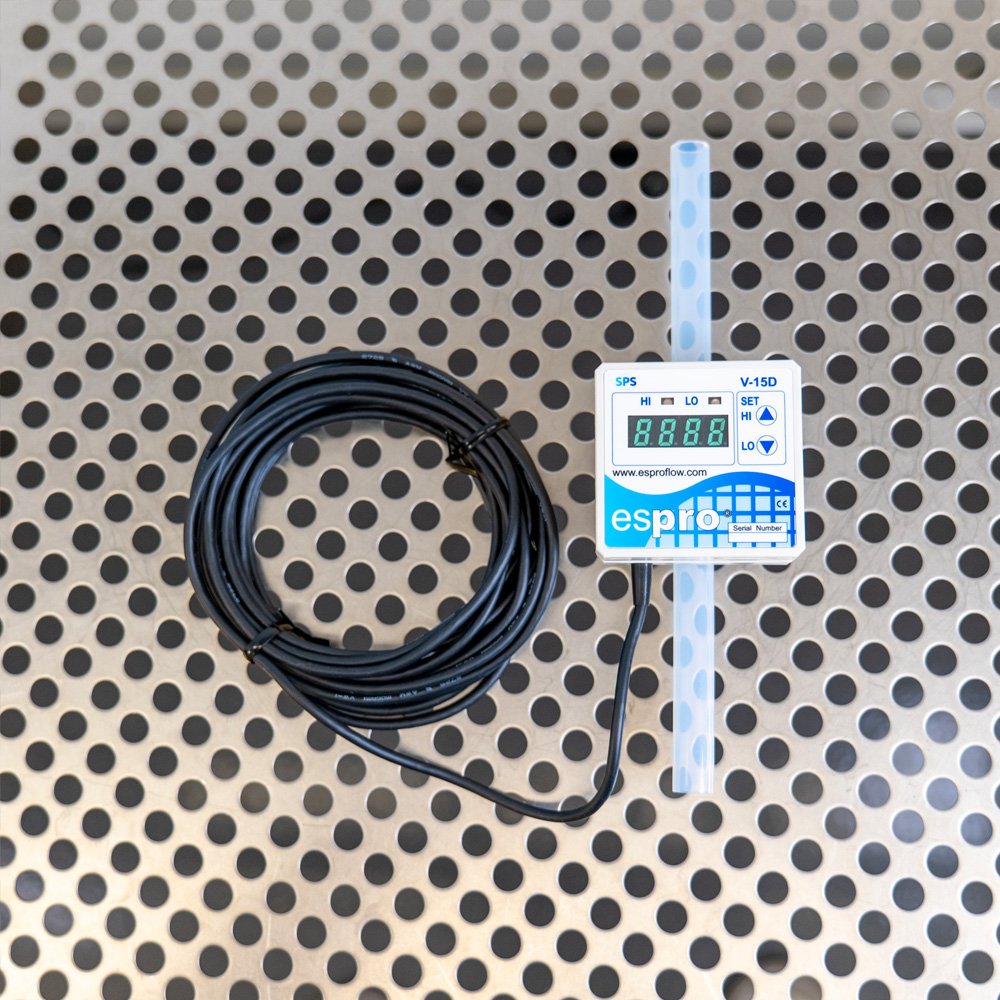

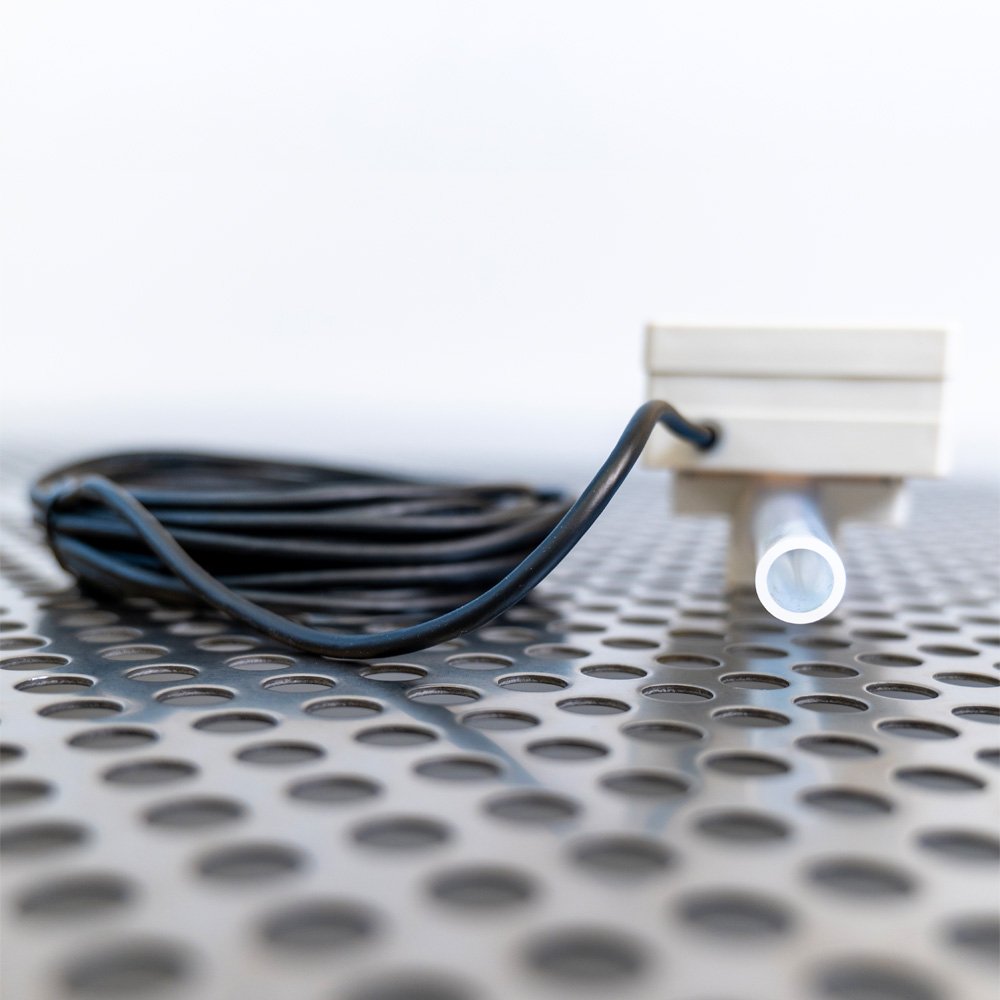

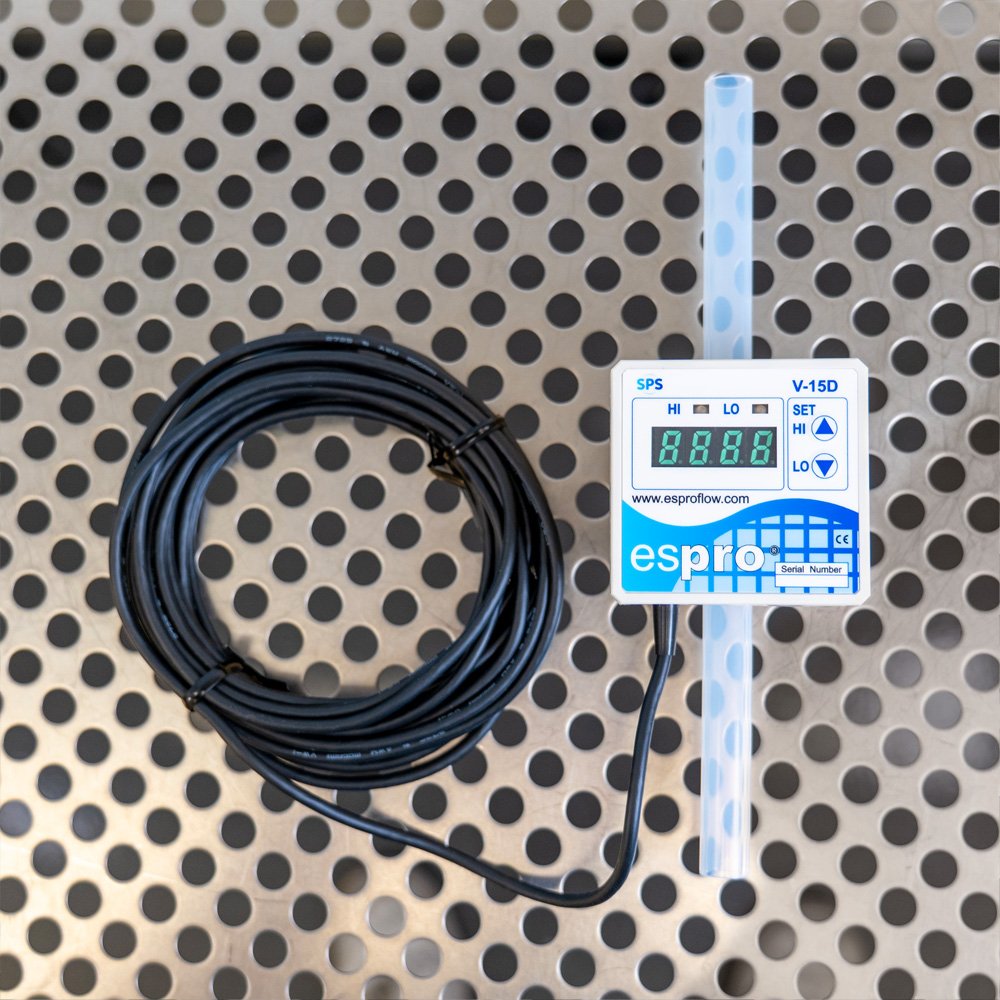

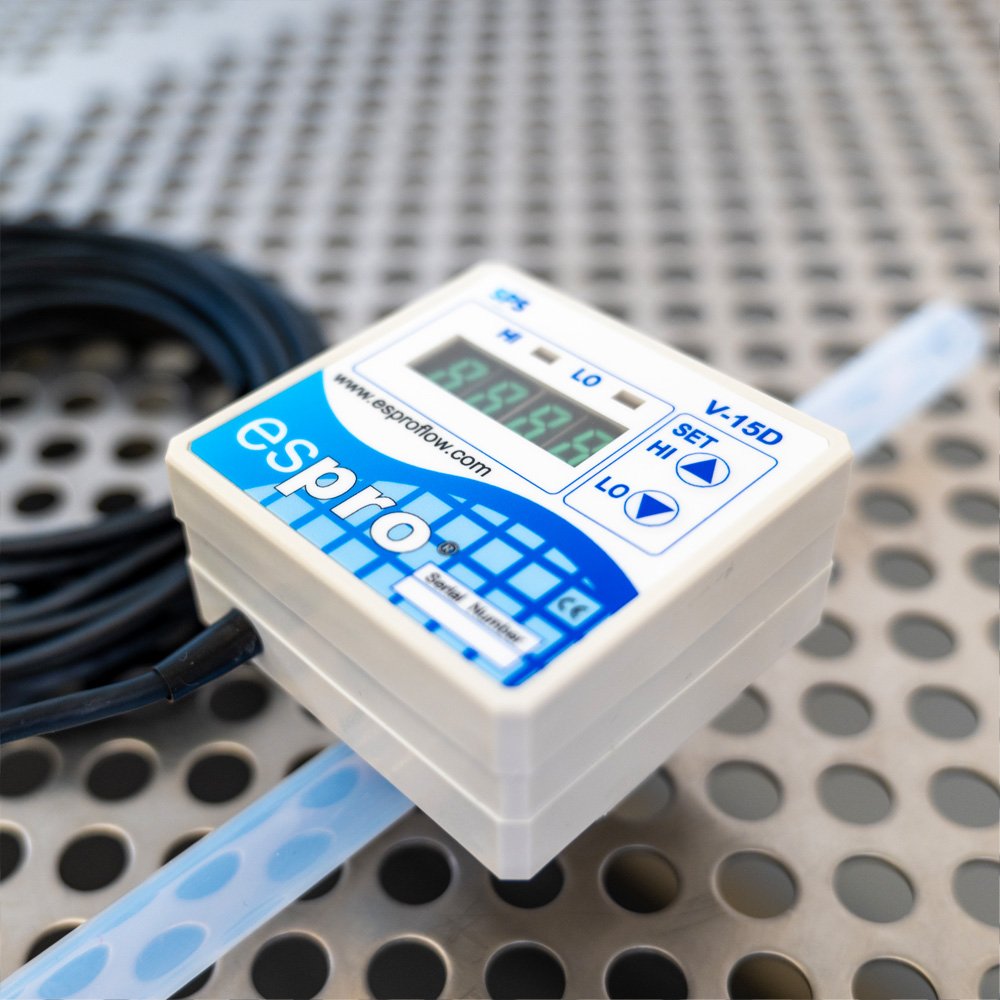

Vortex Flow Meter - Flow range 1 - 16 l/min (with Display)
Model: V15D (also available without Display > V15)
The eSPro flow meters are designed for contact-free precision flow measurement of high purity fluids. The ultra-pure PFA body contains no moving parts, eliminating any possibility for particle generation. The eSPro flowmeter uses a non-contact ultrasonic sensor method, that detects the Karman vortex in your fluid. Light weight and compact, the eSPro flow meters compact design allows fitting on closely-spaced parallel piping.
D-series are equipped with a small monitor and provide analog output, pulse output as well as high & low boundary output.
Suitable for tube diameter Ø12.7 x Ø9.35 mm, 1/2"
Specifications:
- Accuracy: +/-1,5% F.S.
- Temperature: 5-85°C
- Pressure: max. 600kPa at 25°C
- Material: all wetted parts of PFA
- Tubing: 1/2" x 3/8"
- Analog Output: 4-20mA
- LED-Display
- Alarm Output
