Vacuum wand set 150-200 mm (WHS-V2)

Wafer handling products

Vacuum wand set 150-200 mm (WHS-V2)

Ready-To-Install Assembly
Antistatic Construction
Small device up to 300 mm wafers

Applications

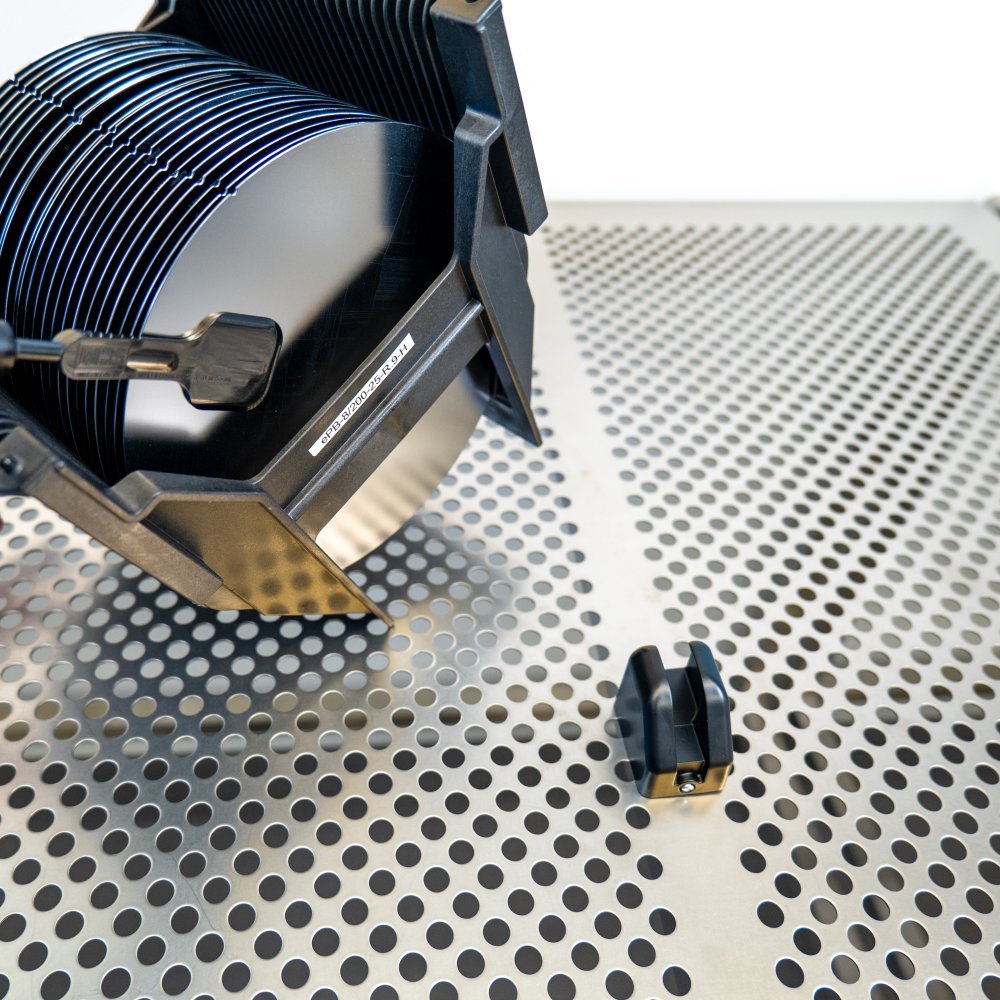

  • General use: Vacuum wands are utilized to pick up and transport wafers from one location to another without adding particles.
  • Sorting: For manual wafer sorting applications, vacuum wands allow operators to move wafers safely and precisely within a parent lot. They can also be used to combine lots together, add test wafers, and replace any damaged wafers, as necessary.
  • Inspection - Operators can use vacuum wands to pull out a wafer from a parent lot and inspect it under specialized lighting to look for defects. This ensures that the process has been successful and that the wafer meets the required specifications

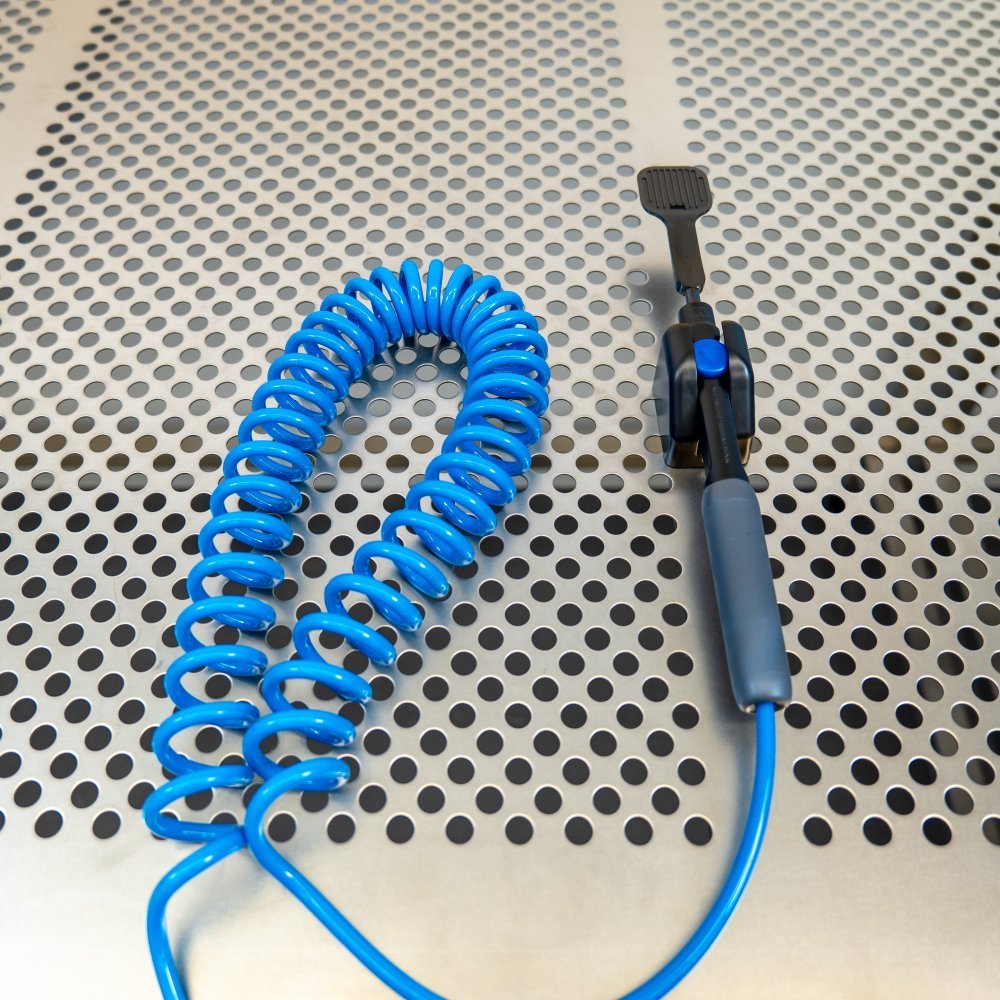

The WHS-V2 is an prepackaged vacuum wand set includes everything needed to start handling 150-200mm SEMI standard wafers safely using a house vacuum. Assembly includes: tip (WHS-V1-AP4NST), wand (WHS-V2-LG), coil cord (WHS-V3-CC), holder (WHS-V4-WM). Antistatic construction, > 800mBar (23" Hg) recommended. ISO Class 3
