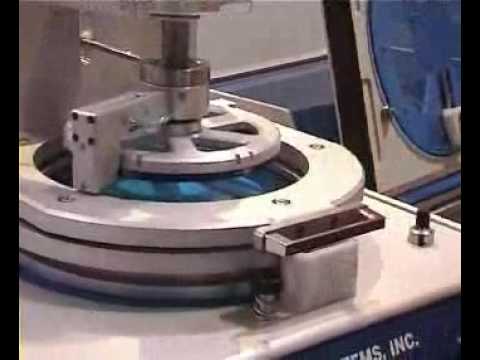

UH130-12 Die Matrix Expander
ULTRON SYSTEMS
UH130-12 Die Matrix Expander
UH130-12 Die Matrix Expander
Model UH130 Die Matrix Expander defines the standard in die presentation through precise control of die separation process parameters. Better die presentation results in higher throughput and increased yield. The UH130 series facilitates this by maintaining die orientation and consistent die spacing. Our Die Matrix Expander incorporates 1) Flexiblity in both accommodation and adjustability, 2) Accuracy and precision for repeatable results, and 3) Simplicity in operation. Die separation distance is precisely controlled.
Features:
Options:
Model UH130 Die Matrix Expander defines the standard in die presentation through precise control of die separation process parameters. Better die presentation results in higher throughput and increased yield. The UH130 series facilitates this by maintaining die orientation and consistent die spacing. Our Die Matrix Expander incorporates 1) Flexiblity in both accommodation and adjustability, 2) Accuracy and precision for repeatable results, and 3) Simplicity in operation. Die separation distance is precisely controlled.
Features:
- Up to 12" (300mm) wafer capability
- Pneumatic ram with speed control and 3" adjustable stroke (ram height)
- Motorized circular cutter assembly
- Emergency stop with manual clamp
- Digital temperature-controlled heated stage with thermistor
- Adjustable stroke stop, resulting in consistent repeatability of expansion
- Plexiglass shroud, anti-static
- Die separation distance precisely controlled for consistent repeatability
- Alignment pins provide easy and precise film frame placement
- Reduced alignment times and increased yield from automated processes
- Lower clamp (outer grip ring) assembly& upper clamp (inner grip ring) assembly can hinge separately to allow use of larger grip rings
- Convenient: Tabletop design, easy to operate
- Operator variables virtually eliminated
Options:
- Grip Ring Adapter for various wafer / grip ring sizes
- 'CE' Certification
Brand
ULTRON SYSTEMS
Product Number
UH130-12
TAG 1
Up to 12" (300mm)
TAG 2
Pneumatic
TAG 3
Optional: Motorized Cutter
