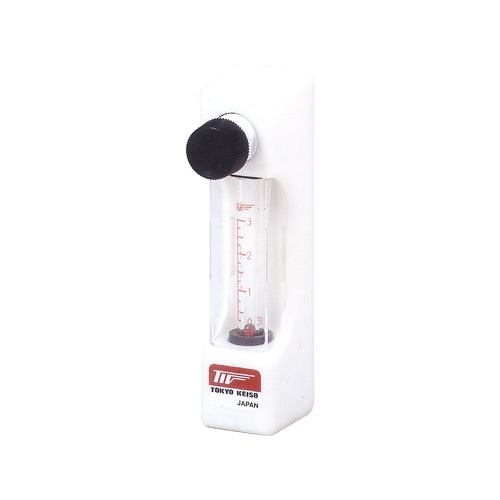

Purge Meter XP

Tokyo Keiso CO., LTD.

General purpose, quick delivery

Customizable, contact us with your requirements

The body of the standard compact purgemeter is made of Polyacetal (POM). This purgemeter can reduce your stock with a quick delivery and low cost.

Applications

General purpose, quick delivery.

Measuring medium	Gases, liquids
Nominal diameter	Rc: 1/4" (Standard)
Flow range (Standard)	Air: Min. 0.1 to 1 L/min (nor) Max. 2 to 20 L/min (nor) ·0 MPa (1 atm), 20°C Water: Min. 0.02 to 0.1 L/min Max. 0.2 to 1 L/min ·1.0 g/cm³, 1.0 mPa·s When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001).
Flow range (Optional)	Air: Min. 0.1 to 1 L/min (nor) Max. 2 to 20 L/min (nor) Water: Min. 0.02 to 0.1 L/min Max. 0.2 to 1 L/min When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001).
Fluid temperature	Max. 50°C
Fluid pressure	0.4 MPa max.
Process Connection	Rc
Accuracy	±5% F.S.
