Purge Meter P-710

Purge Meter P-710
Tokyo Keiso CO., LTD.

Purge Meter P-710

General purpose (small flow rate)
Customizable, contact us with your requirements
Product description
Specifications

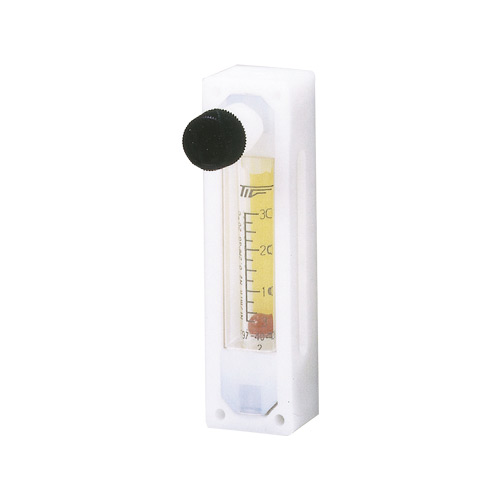

The P-710 is a light, compact, all-fluororesin purgemeter ideal for measuring various corrosive solutions.

Applications

General purpose (small flow rate)

Measuring medium Gases, liquids
Nominal diameter Rc: 1/8"(Standard)
Pillar fitting: (OD) 6.35 mm, 6 mm, 8 mm
Flow range Air:
  • Min. 50 to 500 mL/min (nor)
  • Max. 2 to 20 L/min (nor)
Water:
  • Min. 3 to 30 mL/min
  • Max. 0.4 to 2 L/min
  • When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001).
  • When selecting a flow range, refer to the standard flow rate table.
Fluid temperature Max. 70°C
Fluid pressure 0.5 MPa max.
Process Connection Rc, Pillar fitting
Accuracy ±5% F.S.
