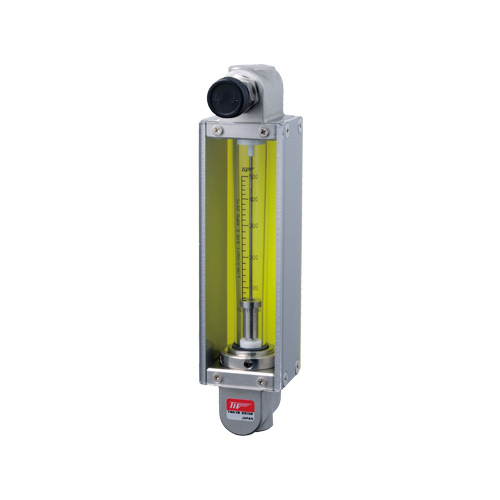

Purge Meter P-510

Purge Meter P-510
Tokyo Keiso CO., LTD.

Purge Meter P-510

General purpose (large flow rate)
Customizable, contact us with your requirements
Product description
Specifications

The P-510 is a purgemeter for large flow rates with the same face-to-face dimension as the P-200 for small flow rates.

Applications

General purpose (large flow rate)

Measuring medium Gases, liquids
Nominal diameter Rc: 3/8" (Standard), 1/4", 1/2", 3/4", 1"
NPT: 1/4", 3/8", 1/2", 3/4", 1"
SW: 3/8"
VCR: 3/8", 1/2", 3/4"
Flange: 10A, 15A (1/2"), 20A (3/4"), 25A (1")
Flow range Air:
  • Min. 2.5 to 25 L/min (nor)
  • Max. 60 to 600 L/min (nor
  • (Air at 0°C, 0 MPa(1atm))
Water:
  • Min. 0.1 to 1 L/min
  • Max. 3 to 30 L/min
  • (Water with a density of 1.0 g/cm³ and viscosity of 1.0 mPa·s)
  • When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001).
  • When selecting a flow range, refer to the standard flow rate table.
Fluid temperature Max. 120°C (Depends on the gasket material)
Fluid pressure 0.8 MPa max.
Process Connection Rc, NPT, SW, VCR, Flange
Accuracy ±5% F.S.
