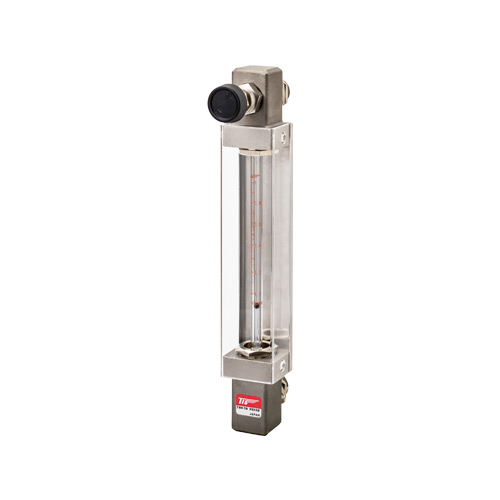

Purge Meter P-400

Tokyo Keiso CO., LTD.

For corrosive services

Customizable, contact us with your requirements

The P-400 is a corrosion-resistance type purgemeter with all stainless steel construction. Panel installation and flange connection are possible.

Applications

Corrosive services

Measuring medium	Gases, liquids
Nominal diameter	Rc: 1/4" (Standard) , 1/8", 3/8", 1/2" NPT: 1/8", 1/4", 3/8", 1/2" Flange: 10A, 15A (1/2"), 20A (3/4"), 25A (1")
Flow range	Air: Min. 80 to 800 mL/min (nor) Max. 6 to 60 L/min (nor) Air at 0°C, 0 MPa (1atm) Water: Min. 5 to 50 mL/min Max. 0.2 to 2 L/min Water with a density of 1.0 g/cm³ and viscosity of 1.0 mPa·s When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001). When selecting a flow range, refer to the standard flow rate table.
Fluid temperature	Max. 120°C (Depends on the gasket material) (Max. 60°C for PVC)
Fluid pressure	1 MPa max. (0.5 MPa max. for PVC)
Accuracy	±3% F.S.
