Tokyo Keiso CO., LTD.

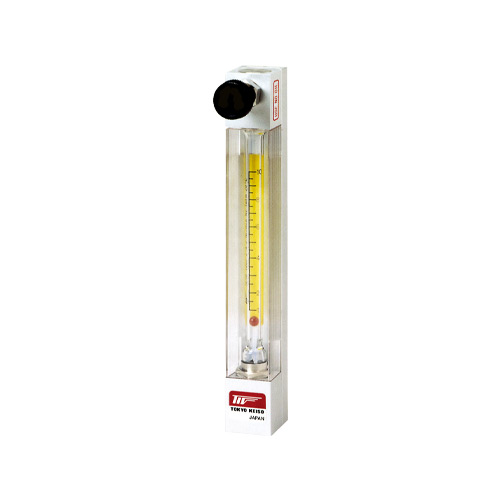

Purge Meter P-200

Purge Meter P-200
Tokyo Keiso CO., LTD.

Purge Meter P-200

Built-in use for general-purpose equipment (small flow rate)
Customizable, contact us with your requirements
Product description
Specifications

The P-200 is a standard type purgemeter with a face-to-face dimension of 200 mm, which is the same as the P-510 for large flow rates. The P-200 features high accuracy with an easy-to-see large scale and thus is widely used for experiments and in other fields.

Applications

Built-in use for general-purpose equipment (small flow rate)

Measuring medium Gases, liquids
Nominal diameter Rc: 1/4" (Standard), 1/8"
NPT: 1/4", 1/8"
Flow range Air:
  • Min. 5 to 50 mL/min (nor)
  • Max. 6 to 60 L/min (nor)
Water:
  • Min. 5 to 50 mL/min
  • Max. 0.2 to 2 L/min
  • When selecting a flow range, refer to "Index & Quick Reference for P Series Purgemeters" (TG-S0001).
  • When selecting a flow range, refer to the standard flow rate table.
Fluid temperature Max. 120°C (Depends on the gasket material)
Fluid pressure 0.8 MPa max.
Process Connection Rc, NPT
Accuracy ±3% F.S.
