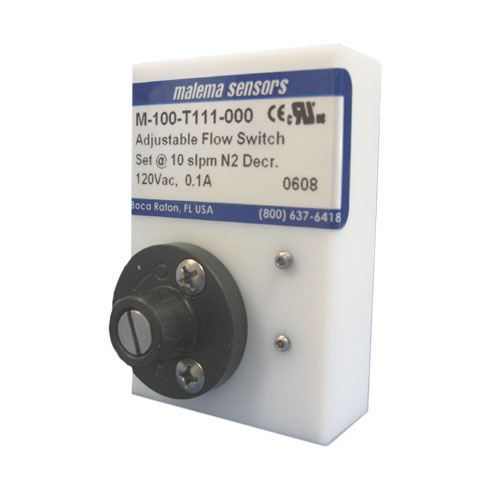

M-100 Series Adjustable Flow Switches

M-100 Series Adjustable Flow Switches
MALEMA

M-100 Series Adjustable Flow Switches

Brass
316 Stainless Steel
PTFE

1/8" FNPT
1/4" FNPT

SPST N.O.
SPST N.C.
SPDT

Ultra Low (1/8" 316 SS Only)
Low
High

Vertical Only
Universal Mounting

316 SS with Epoxy
PTFE Encapsulated
All 316SS (no epoxy)

Viton
Kalrez
PTFE Encapsulated Viton

Quoteform

Please fill in the quoteform to send your request.
Share configuration
Reset configuration
M-100 Series Adjustable Flow Switches

The M-100 Series is an extremely sensitive flow switch. It has been engineered to monitor vital sample flow parameters for instrumentation in process control and inert blanket gases. It is used as an auxiliary alarm monitor for flow meters and is ideally suited for applications when installed on a by-pass for determination of filter plugging. Infinite adjustment permits detection and signaling of very low fluid flows with the added capability of detection in high flows.

Features:
  • Field adjustable
  • Infinite flow range
  • For corrosive and non-corrosive liquids and gases
  • Extremely accurate and sensitive
  • Low pressure drop
  • All PTFE switch available
  • Universal mounting available

Performance Specifications:
  • Calibration range: Air : 50 - 60,000 scc/min, Water : 3 - 950 cc/min
  • Set Point Accuracy: ±10% maximum
  • Repeatability: ± 1%
  • Hysteresis: 15%
  • Material Versions: Brass, 316 Stainless Steel, Teflon® (other materials available on request)

Applications:
  • Gas and liquid analyzers
  • Atmosphere furnaces
  • CVD tools
  • Vacuum systems
